The new all-in-one hinge for pedestrian gates

Cerniera OLMIVERT 1 all-in-one con cover

Features

Olmivert 1 is designed to offer reliability, ease of installation and maximum versatility.
The system allows quick installation and flexible configuration according to the specific installation requirements. Different closing configurations are available, with or without 90° hold-open function, for pedestrian gates weighing up to 80 kg or up to 150 kg.

  • Automatic closing from approx. 80° or 180° to 0°, with adjustable closing speed
  • Adjustable final latch angle from 20° to 0°
  • Gate weight: up to 80 kg or up to 150 kg (depending on the installed kit)
  • Gate width: 500 mm min / 1200 mm max
  • Vertical and horizontal alignment adjustment +/- 3 mm
  • Black finish with 50-micron deep oxidation

Kit composition

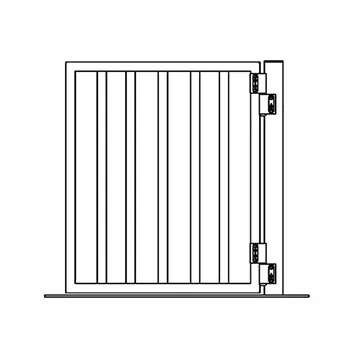

Composizione kit destra

Kit code: 500.716

Max gate weight: 150 kgs
Right hand opening
Closing mechanism from 180° to 0° without 90° hold-open
Kit composed of n.2 hydraulic hinges Olmivert 12

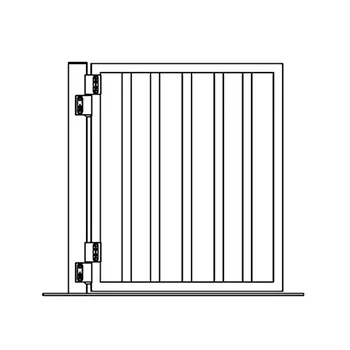

Composizione kit sinistra

Kit code: 500.717

Max gate weight: 150 kgs
Right hand opening
Closing mechanism from 180° to 0° without 90° hold-open
Kit composed of n.2 hydraulic hinges Olmivert 12

Composizione kit destra

Kit code: 500.720

Max gate weight: 80 kgs
Right hand opening
Closing mechanism from 180° to 0° without 90° hold-open
Kit composed of n.1 hydraulic hinge Olmivert 12 and n.1 dummy hinge Olmivert 10

Composizione kit sinistra

Kit code: 500.721

Max gate weight: 80 kgs
Left hand opening
Closing mechanism from 180° to 0° without 90° hold-open
Kit composed of n.1 hydraulic hinge Olmivert 12 and n.1 dummy hinge Olmivert 10

Composizione kit destra

Kit code: 500.724

Max gate weight: 150 kgs
Right hand opening
Closing mechanism from 80° to 0° with 90° hold-open
Kit composed of n.2 hydraulic hinges Olmivert 11

Composizione kit sinistra

Kit code: 500.725

Max gate weight: 150 kgs
Left hand opening
Closing mechanism from 80° to 0° with 90° hold-open
Kit composed of n.2 hydraulic hinges Olmivert 11

Composizione kit destra

Kit code: 500.726

Max gate weight: 80 kgs
Right hand opening
Closing mechanism from 80° to 0° with 90° hold-open
Kit composed of n.1 hydraulic hinges Olmivert 11 and n.1 dummy hinge Olmivert 10

Composizione kit sinistra

Kit code: 500.727

Max gate weight: 80 kgs
Left hand opening
Closing mechanism from 80° to 0° with 90° hold-open
Kit composed of n.1 hydraulic hinges Olmivert 11 and n.1 dummy hinge Olmivert 10
